Message Effects

Message effects are whole-message transforms applied via [bracket] tags on immersive HUD messages. Each entry below lists the canonical tag name, its parameters with defaults and ranges, and an example.

breathe

Message

Scales the message up and down in a sine wave, producing a slow breathing pulse.

Syntax

[breathe amp=0.05 freq=0.5]

Parameters

Name	Alias	Type	Default	Description
amplitude	amp	float	0.05	Scale oscillation amplitude (0-0.5)
frequency	freq	float	0.5	Breathing rate in Hz (0-20)

Example

[breathe amp=0.08 freq=0.4]You have been poisoned

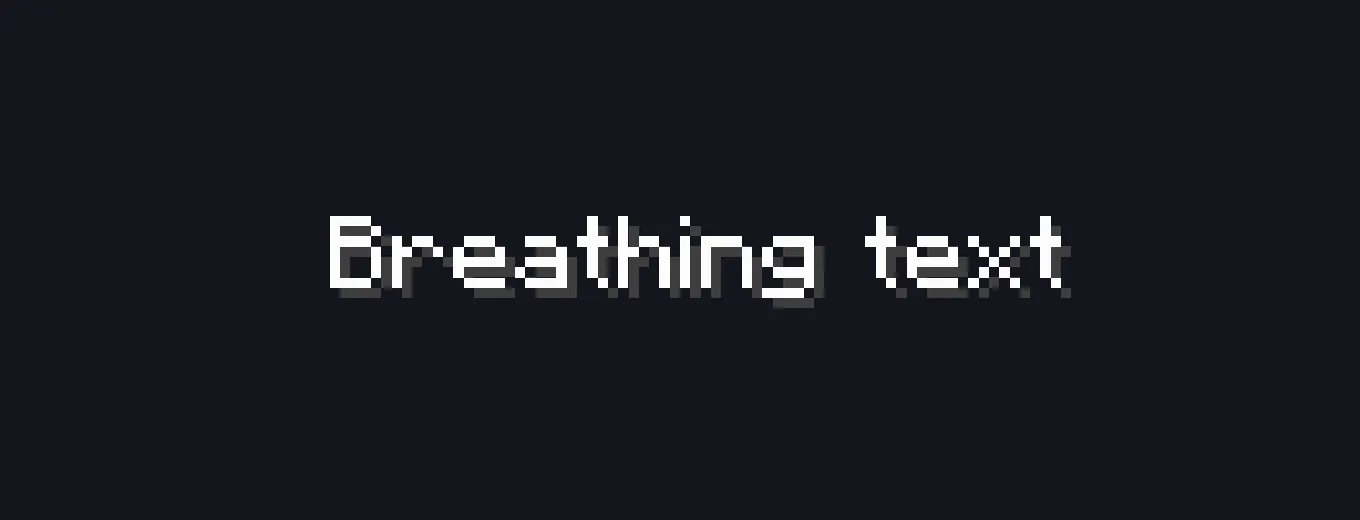

A message subtly expanding and contracting in a slow breathing rhythm

Source: BreatheMessageEffect.java

drift

Message

Translates the message along two independent sine paths to produce a floating, wandering motion.

Syntax

[drift ax=3 ay=2 freq=0.4]

Parameters

Name	Alias	Type	Default	Description
amplitudeX	ax	float	3.0	Horizontal drift amplitude in px (0-100)
amplitudeY	ay	float	2.0	Vertical drift amplitude in px (0-100)
frequency	freq	float	0.4	Drift rate in Hz (0-20)

Example

[drift ax=5 ay=3 freq=0.3]A gentle breeze passes through...

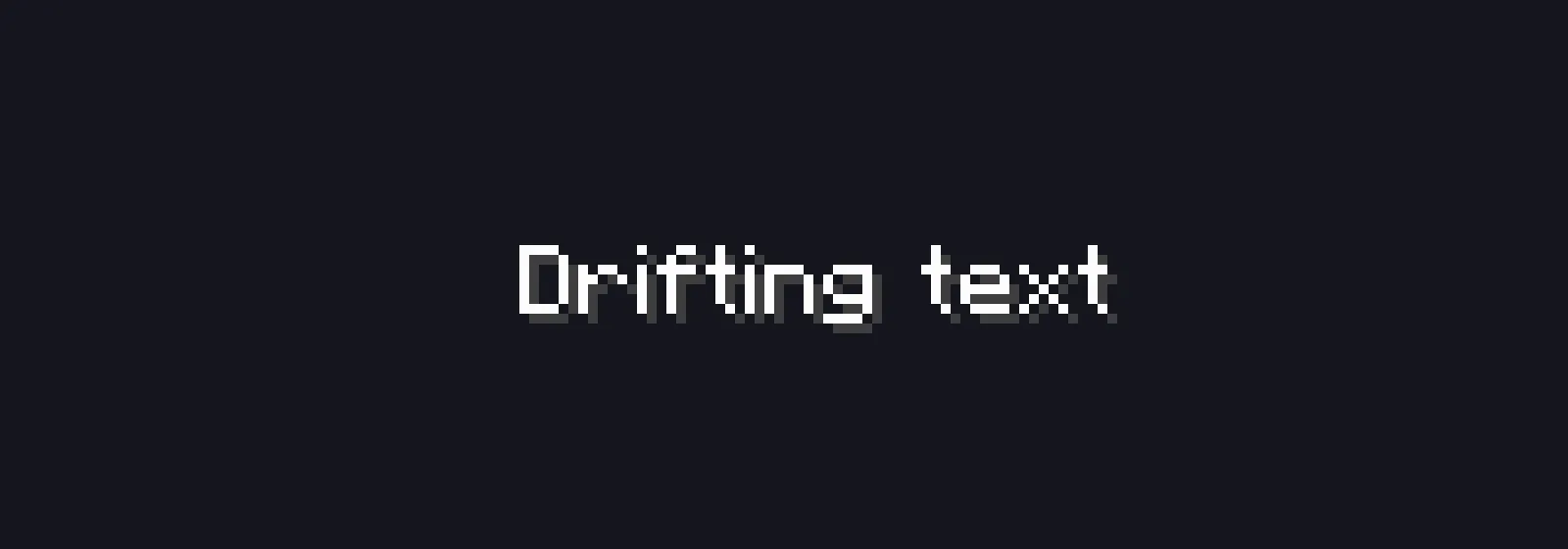

A message drifting slowly in an irregular figure-eight path

Notes

The Y axis uses a 1.37x frequency multiplier relative to X, so the paths never lock into a simple loop.

Source: DriftMessageEffect.java

drip

Message

Causes each character to detach and fall downward with gravity, with an optional trailing streak and color override.

Syntax

[drip freq=0.5 len=8 fade=true]

Parameters

Name	Alias	Type	Default	Description
frequency	freq	float	0.5	Drip stagger frequency (0.05-20)
length	len	float	8.0	Trail length in px (0-32)
fade	-	bool	true	Fade trail alpha as it falls
color	col	color hex	null	Optional override color for drips
sound	snd	string	null	Sound preset or resource id
volume	vol	float	0.5	Sound volume (0-2)
pitch	-	float	1.0	Sound pitch (0.5-2)

Example

[drip freq=0.8 len=12 col=880000]Blood drips from the walls

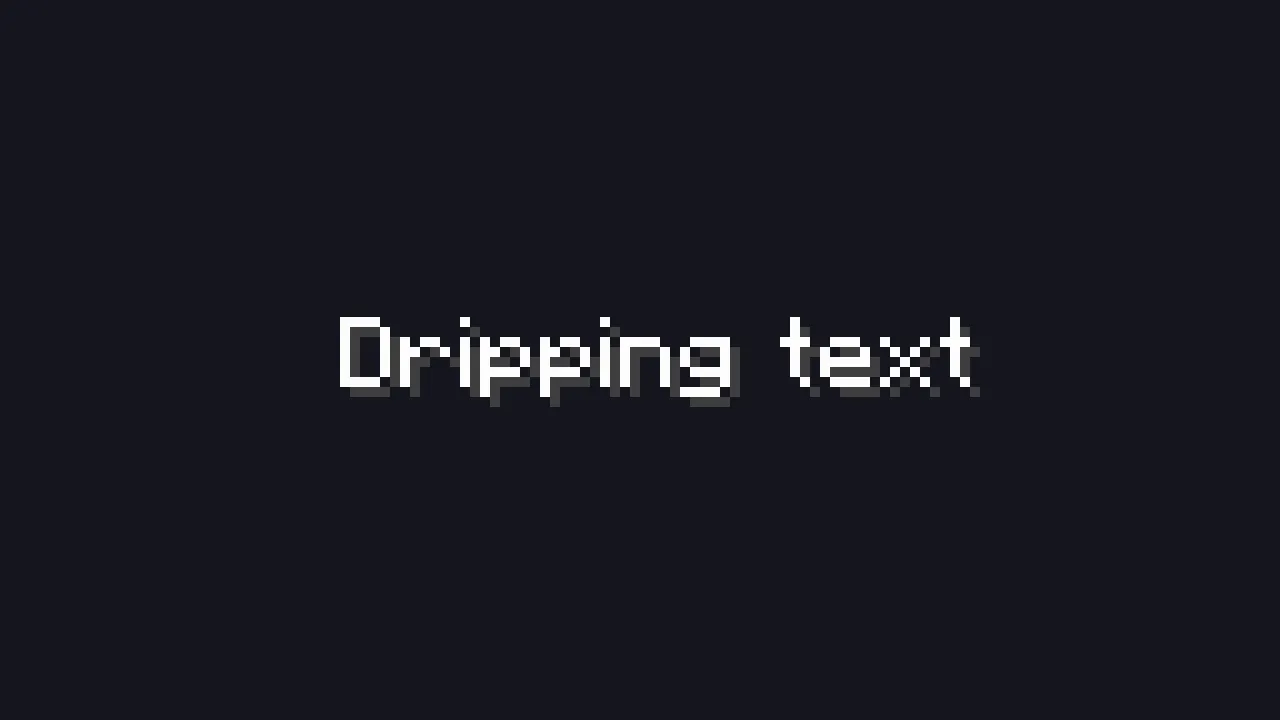

Characters detaching from the message and falling downward with a fading red streak

Notes

drip operates per-character. Each glyph falls independently with a staggered start time determined by its index. The trail is rendered as a small cluster of sibling copies above the falling character.

Source: DripMessageEffect.java

float

Message

Oscillates the message horizontally and vertically together along a shared sine wave.

Syntax

[float dx=0 dy=4 freq=0.3]

Parameters

Name	Alias	Type	Default	Description
offsetX	dx	float	0.0	Horizontal float magnitude in px (-100 to 100)
offsetY	dy	float	4.0	Vertical float magnitude in px (-100 to 100)
frequency	freq	float	0.3	Float oscillation rate in Hz (0-20)

Example

[float dy=6 freq=0.25]Hovering text

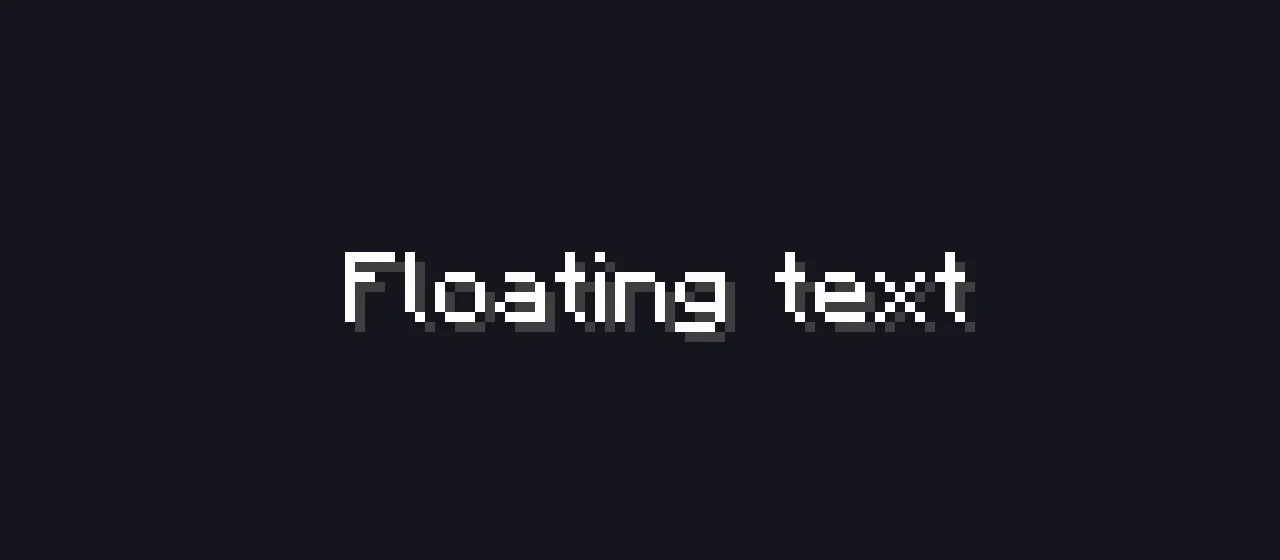

A message gently bobbing up and down in a slow sine wave

Notes

Both dx and dy are driven by the same sine phase, so the message moves diagonally if both are nonzero.

Source: FloatMessageEffect.java

grow

Message

Pulses the message scale between a minimum and maximum value.

Syntax

[grow min=0.8 max=1.2 freq=1.0 pivot=center]

Parameters

Name	Alias	Type	Default	Description
min	-	float	0.8	Minimum scale (0.01-10)
max	-	float	1.2	Maximum scale (0.01-10)
frequency	freq	float	1.0	Pulse rate in Hz (0-20)
pivot	-	enum	center	Scale pivot: `top`, `center`, `bottom`

Example

[grow min=0.9 max=1.15 freq=0.6 pivot=bottom]Level up!

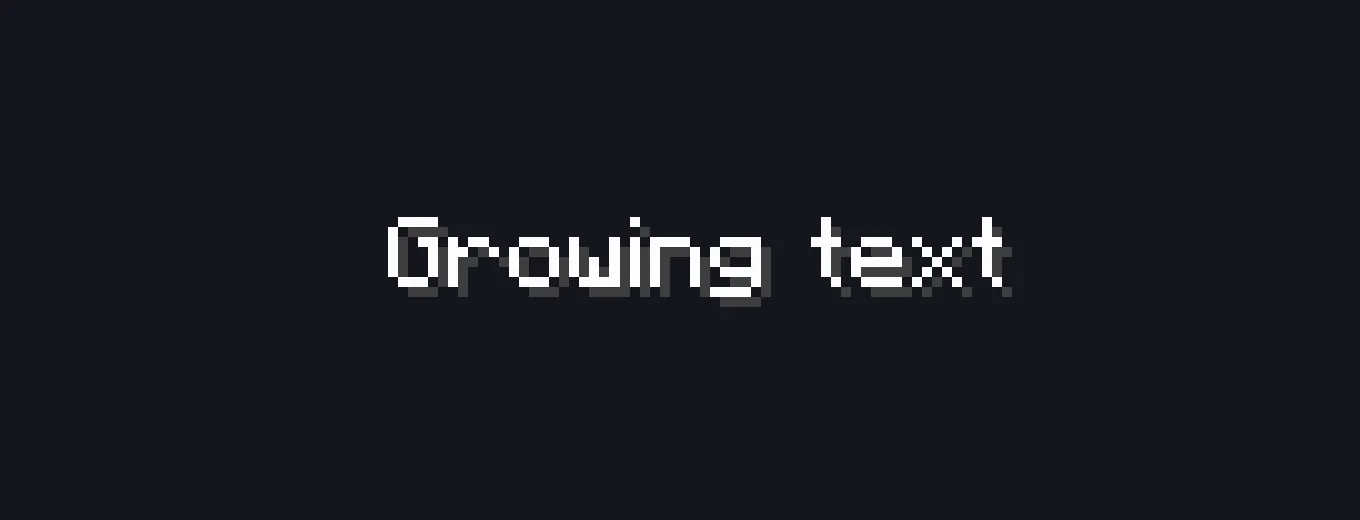

A message growing and shrinking in a slow pulse, anchored at its bottom edge

Source: GrowShrinkMessageEffect.java

matrix

Message

Reveals or dismisses the message with a Matrix-style digital rain cascade, with optional side rain columns.

Syntax

[matrix mode=in dur=1.5 delay=0.1 density=14 spread=1.5]

Parameters

Name	Alias	Type	Default	Description
mode	-	enum	in	`in`, `out`, or `both`
duration	dur	float	1.5	Resolve duration per character in seconds (0.05-30)
delay	-	float	0.1	Per-character stagger delay in seconds (0-1)
density	-	int	14	Side rain streams per character (0-30)
spread	-	float	1.5	Side rain horizontal spread multiplier (0-3)
color	col	color hex	null	Override matrix color; defaults to each character’s own color
sound	snd	string	null	Sound preset or resource id
volume	vol	float	0.5	Sound volume (0-2)
pitch	-	float	1.0	Sound pitch (0.5-2)

Example

[matrix mode=both dur=1.2 density=10]ACCESS GRANTED

Characters materializing from falling green glyphs, then dissolving back into digital rain

Notes

mode=out and mode=both require a finite-duration message. On an indefinite message the effect logs a warning and falls back to in behavior.

Source: MatrixMessageEffect.java

rock

Message

Rotates the message back and forth around a pivot point in a sine wave.

Syntax

[rock ang=5 freq=1.0 pivot=center]

Parameters

Name	Alias	Type	Default	Description
angle	ang	float	5.0	Max rotation in degrees (0-90)
frequency	freq	float	1.0	Rocks per second (0-20)
pivot	-	enum	center	Rotation pivot: `top`, `center`, `bottom`

Example

[rock ang=10 freq=1.5 pivot=bottom]Watch out!

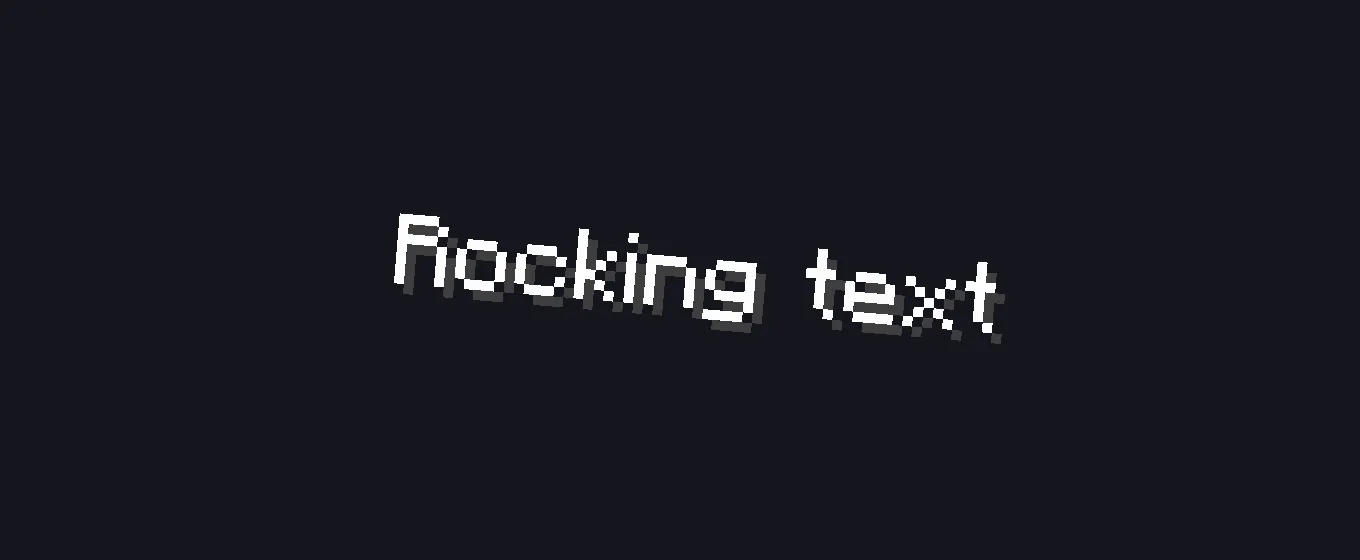

A message rocking left and right around its center, anchored at the bottom

Source: RockMessageEffect.java

shatter

Message

Explodes each character into flying fragments after a configurable delay.

Syntax

[shatter delay=auto spread=16 dur=0.8 pieces=5]

Parameters

Name	Alias	Type	Default	Description
delay	-	string	`auto`	Seconds before shattering, or `auto` to trigger near message end
spread	-	float	16.0	Fragment spread in px (0-128)
duration	dur	float	0.8	Shatter animation length in seconds (0.05-10)
pieces	-	int	5	Fragments per character (2-8)
sound	snd	string	null	Sound preset or resource id
volume	vol	float	0.5	Sound volume (0-2)
pitch	-	float	1.0	Sound pitch (0.5-2)

Example

[shatter delay=2 spread=24 pieces=6]The crystal shatters

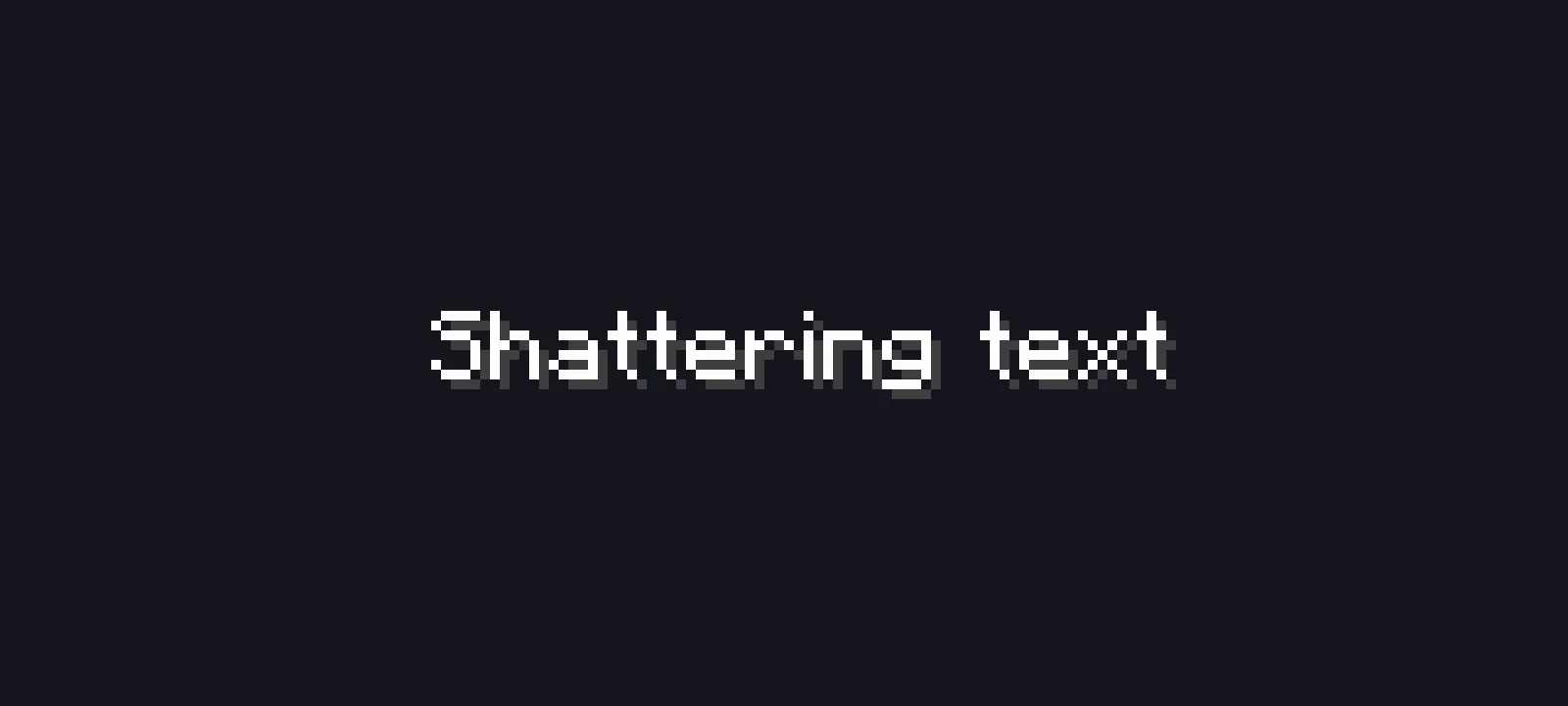

Text exploding outward into scattered letter fragments that fade as they fly apart

Notes

delay=auto sets the trigger time to totalDuration - 0.5s and requires a finite-duration message. On an indefinite message with delay=auto the effect is disabled and a warning is logged. Pass an explicit number (e.g. delay=3) to use shatter on any message.

Source: ShatterMessageEffect.java

slam

Message

Drops the message from above with a damped bounce on landing.

Syntax

[slam height=20 bounces=2 damping=0.5 dur=0.6]

Parameters

Name	Alias	Type	Default	Description
height	-	float	20.0	Drop height in px (0-500)
bounces	-	float	2.0	Number of bounces (0.5-10)
damping	-	float	0.5	Bounce energy loss per bounce (0-0.999)
duration	dur	float	0.6	Total animation length in seconds (0.05-30)
sound	snd	string	null	Sound preset or resource id
volume	vol	float	0.5	Sound volume (0-2)
pitch	-	float	1.0	Sound pitch (0.5-2)

Example

[slam height=40 bounces=3 dur=0.8]CRITICAL HIT

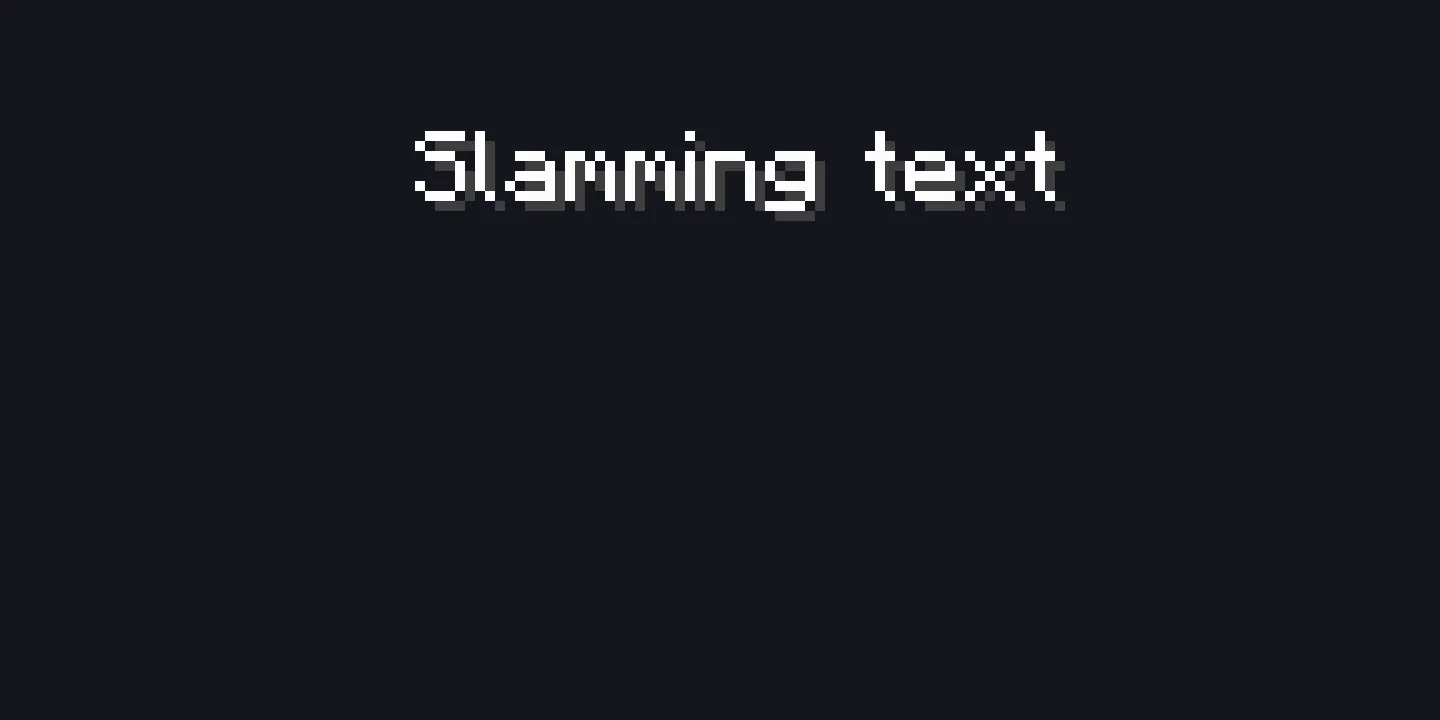

A message dropping from above and bouncing several times before settling into position

Notes

The sound fires at the first bounce peak, not at the moment of initial impact. After dur seconds the animation completes and the message renders at its resting position for the remainder of its display time.

Source: SlamMessageEffect.java

slide

Message

Slides the message in from off-screen or out to off-screen over a short duration.

Syntax

[slide mode=in from=left dur=0.4 easing=ease_out_cubic]

Parameters

Name	Alias	Type	Default	Description
mode	-	enum	in	`in` or `out`
from	dir	enum	left (for `in`), right (for `out`)	Entry/exit direction: `left`, `right`, `top`, `bottom`
duration	dur	float	0.4	Slide length in seconds (0.05-30)
easing	-	enum	ease_out_cubic (for `in`), ease_in_cubic (for `out`)	Easing curve: `linear`, `ease_in_cubic`, `ease_out_cubic`, `ease_in_out_cubic`

Example

[slide mode=in from=top dur=0.5]New objective: Survive

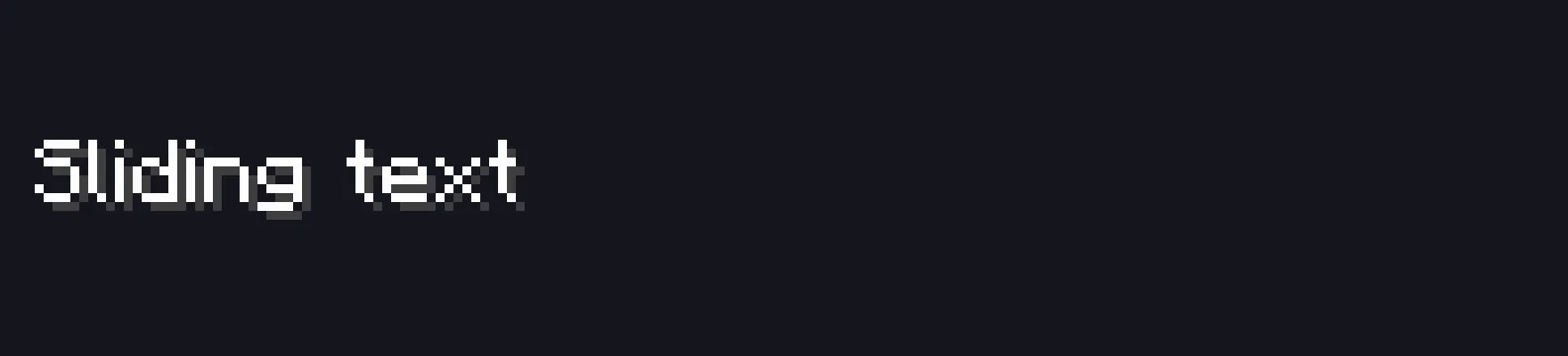

A message sliding in from the top of the screen and settling into its final position

Notes

mode=out requires a finite-duration message to determine when to start the exit. On an indefinite message the effect logs a warning and does nothing.

Source: SlideMessageEffect.java

sound

Message

Plays a sound at a configurable time offset after the message appears.

Syntax

[sound snd=minecraft:entity.experience_orb.pickup vol=1.0 pitch=1.0 at=0]

Parameters

Name	Alias	Type	Default	Description
sound	snd	string	null	Sound preset name or namespaced resource id
volume	vol	float	1.0	Sound volume (0-2)
pitch	-	float	1.0	Sound pitch (0.5-2)
at	-	float	0.0	Trigger time offset in seconds after message appears (0-600)

Example

[sound snd=minecraft:block.anvil.land vol=0.8 at=0.1]SLAM

Notes

The sound fires once per message instance. If sound is null the effect does nothing. at=0 fires on the first render frame.

Source: SoundMessageEffect.java

spin

Message

Continuously rotates the message around a pivot point.

Syntax

[spin freq=1.0 pivot=center]

Parameters

Name	Alias	Type	Default	Description
frequency	freq	float	1.0	Rotations per second (0-20)
pivot	-	enum	center	Rotation pivot: `top`, `center`, `bottom`

Example

[spin freq=0.5 pivot=top]Spinning banner

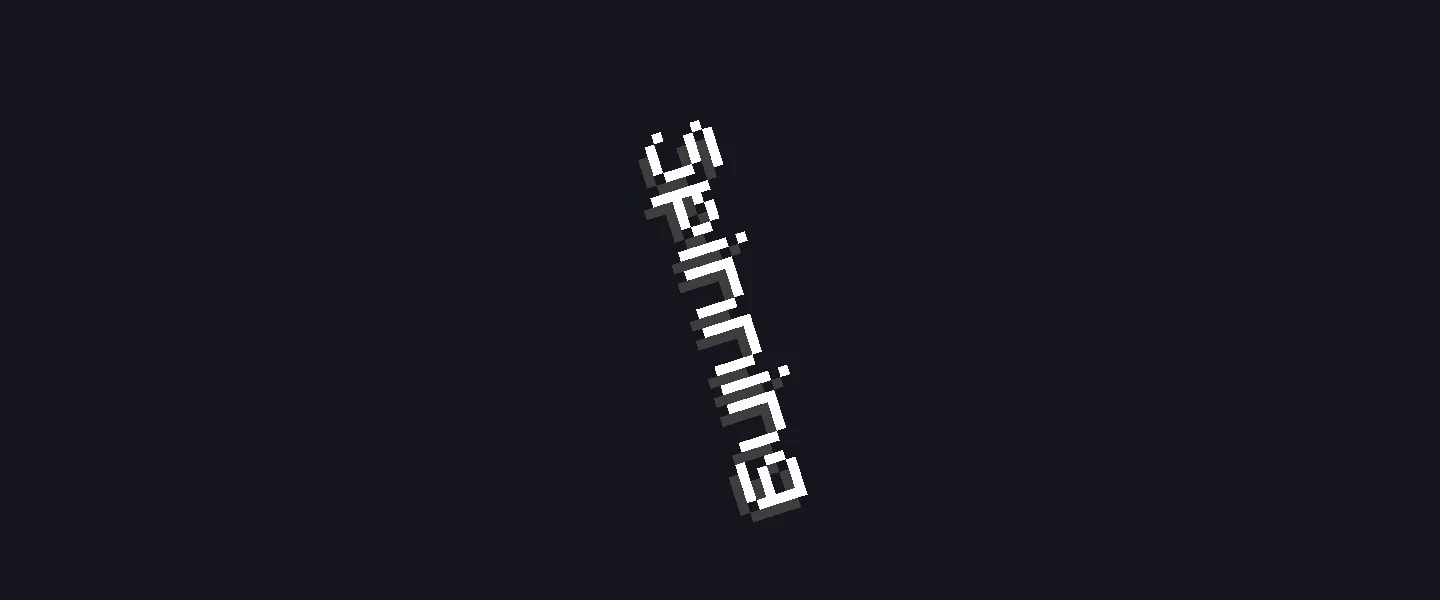

A message rotating continuously around its center point

Source: SpinMessageEffect.java

vibrate

Message

Rapidly jitters the message position using a deterministic noise function, simulating screen shake.

Syntax

[vibrate amp=1.0 freq=15]

Parameters

Name	Alias	Type	Default	Description
amplitude	amp	float	1.0	Vibration magnitude in px (0-50)
frequency	freq	float	15.0	Vibration rate (0-200)

Example

[vibrate amp=2 freq=20]EARTHQUAKE

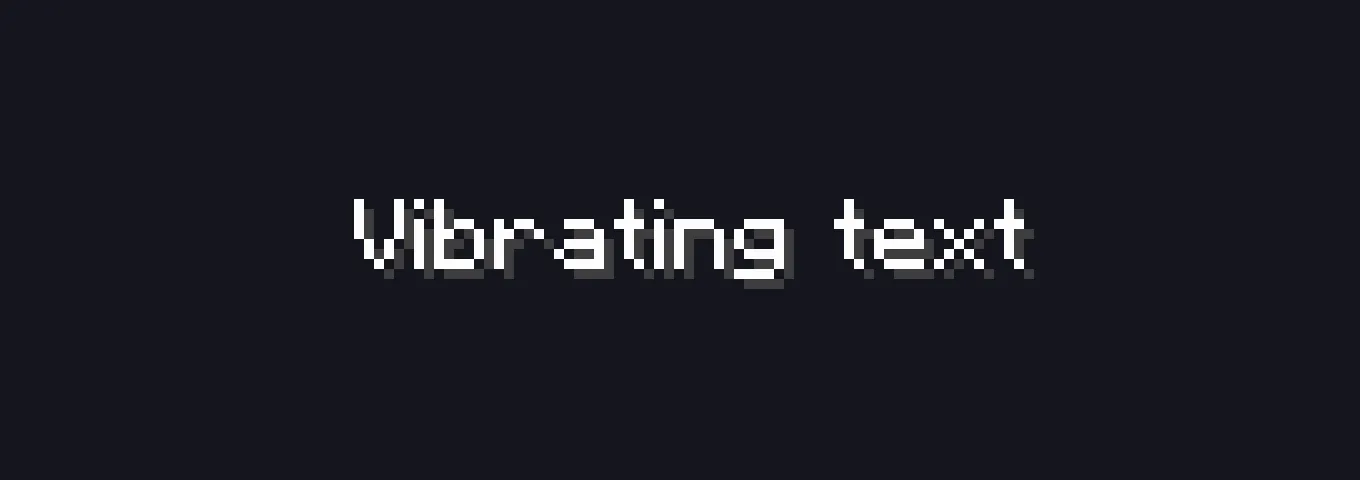

A message shaking rapidly in all directions as if the screen is vibrating

Notes

Unlike drift or float, the displacement is pseudo-random rather than sinusoidal, so it reads as noise rather than oscillation.

Source: VibrateMessageEffect.java
